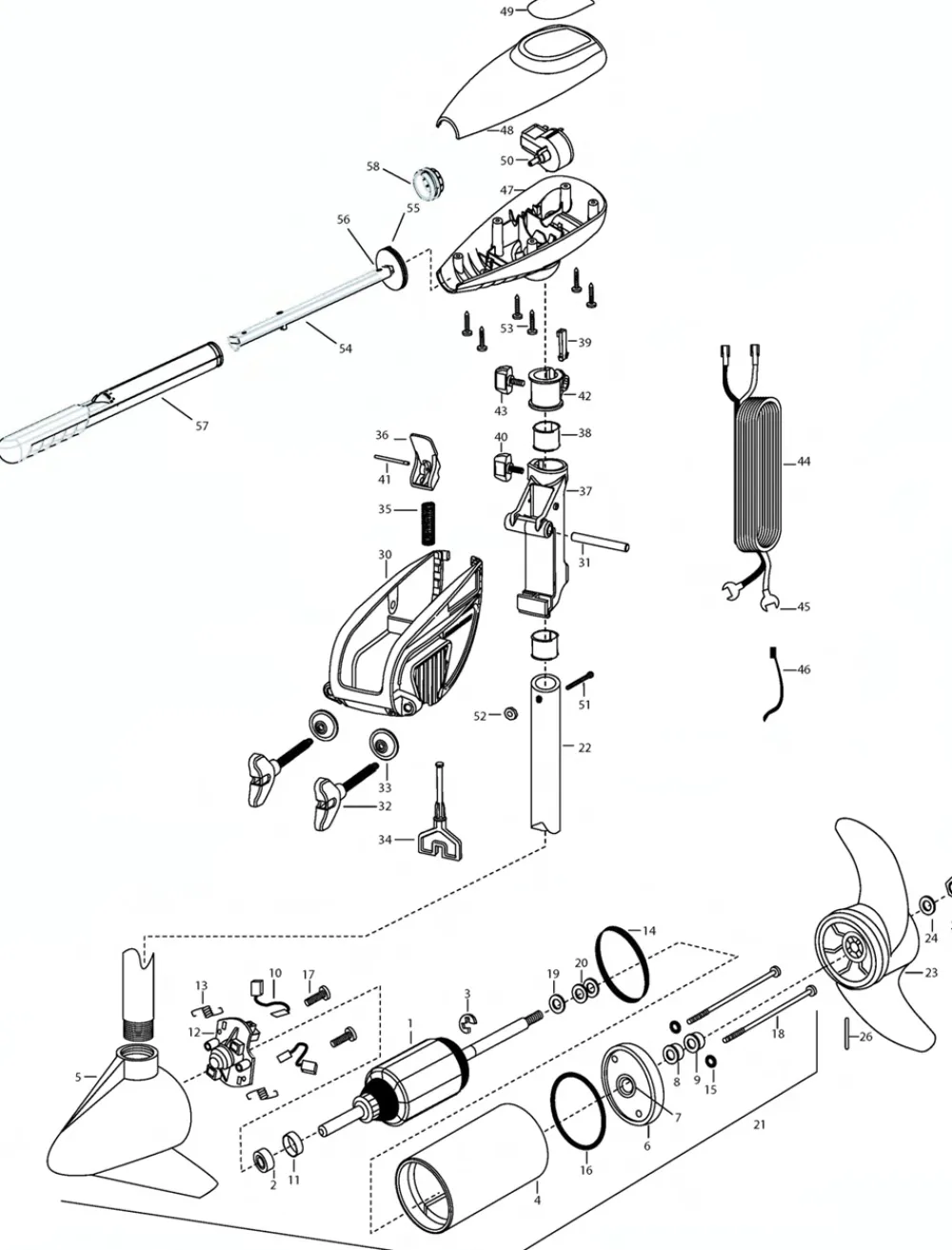

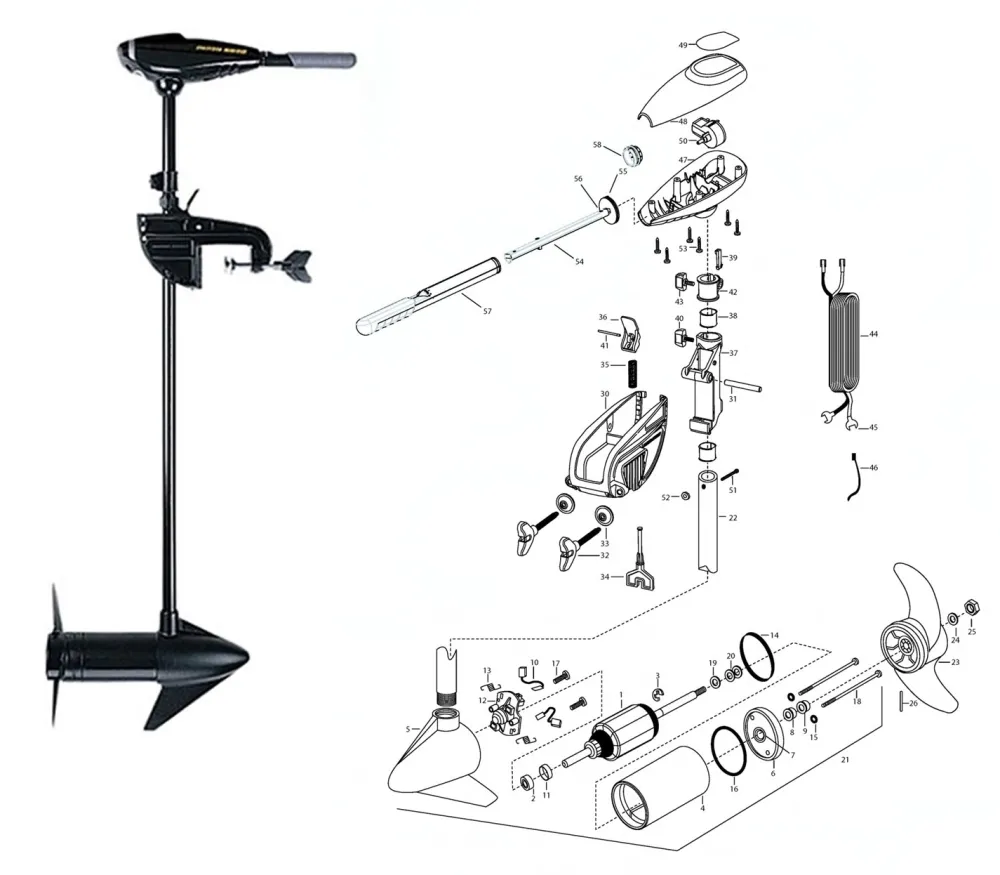

MINN KOTA Pièce Détachée^Pièces détachées pour moteur Endura 55

1- 2-100-117 ARMATURE ASSEMBLY 12V 3.62 FW
2- 140-010 BEARING- BALL
3- 788-015 RETAINING RING
4- 2-200-101 CENTER HOUSING ASSEMBLY-
5- 2-300-196 BRUSH END HOUSING ASSEMBLY 3.62 SPCO 36″
2-300-195 BRUSH END HOUSING ASSEMBLY 3.62 SPCO 42″
6- 2-400-101 PLAIN END HOUSING ASSEMBLY
7- 144-049 BEARING- FLANGE ,SERVICE ONLY
8- 880-003 SEAL
9- 880-006 SEAL WITH SHIELD
10- 188-036 BRUSH ASSEMBLY [2.EA]11- 725-050 BRUSH RETENTION- PAPER TUBE
12- 738-036 BRUSH PLATE WITH HOLDER
13- 975-040 SPRING- TORSION [2.EA]14- 337-036 GASKET
15- 701-008 O-RING [2.EA]16- 701-081 O-RING
17- 830-007 SCREW- # 8-32 [2.EA]18- 830-042 THRU BOLT 10-32X8.83 [2EA]19- 990-067 WASHER- STEEL THRUST
20- 990-070 WASHER- NYLATRON [2.EA]21- 2097092 MOTOR ASSEMBLY 12V 3.62 5SPC FW 36″
2097098 MOTOR ASSEMBLY 12V 3.62 5SPC FW 42″
22- 2032052 TUBE COMPOSITE 36″
2032053 TUBE COMPOSITE 42″
23- MKP-32 PROP- W. WEDGE 2
24- 2151726 WASHER- 5/16 STD SS
25- 2053101 NUT- NYLOC 5/16
26- 2092600 PIN-DRIVE
30- 2061910 BRACKET
31- 2060510 PIN-HINGE
32- 2061300 SCREW-CLAMP [2.EA]33- 2011710 WASHER-CLAMP SCREW [2.EA]34- 2063605 T-BAR, PLASTIC
35- 2062706 SPRING- T-BAR
36- 2067201 LEVER-TILT BLACK
37- 2061810 HINGE-PLASTIC
38- 2037301 BUSHING-HINGE [2.EA]39- 2062800 TENSION BLOCK-SNAP IN
40- 2011385 SCREW, TENSION/KNOB
41- 2060515 PIN, TILT LEVER
42- 2061520 COLLAR-DEPTH
43- 2011365 SCREW-COLLAR/NEW KNOB
44- 2050609 LEADWIRE 10 GA SPADE TERM
45- 2020702 SPADE TERMINAL 10GA. [2.EA]46- 2026300 TIE WRAP [2.EA]47- 2062510 CONTROL BOX
48- 2060214 CONTROL BOX COVER-ENDURA
50- 2064023 SWITCH-FWD/REV 5 SP
51- 2033400 SCREW-10-24 X 1-3/4
52- 2013110 NUT-10-24 HEX
53- 2012100 SCREW-8-18 X 5/8 [6.EA]54- 2990919 INNER HANDLE ASSEMBLY
55- 2060405 PIVOT, HANDLE
56- 2012102 SCREW
57- 2990929 OUTER HANDLE ASSEMBLY
58- 2060009 FRONT BEARING
59- 2888460 O-RING, GASKET SEAL KIT
